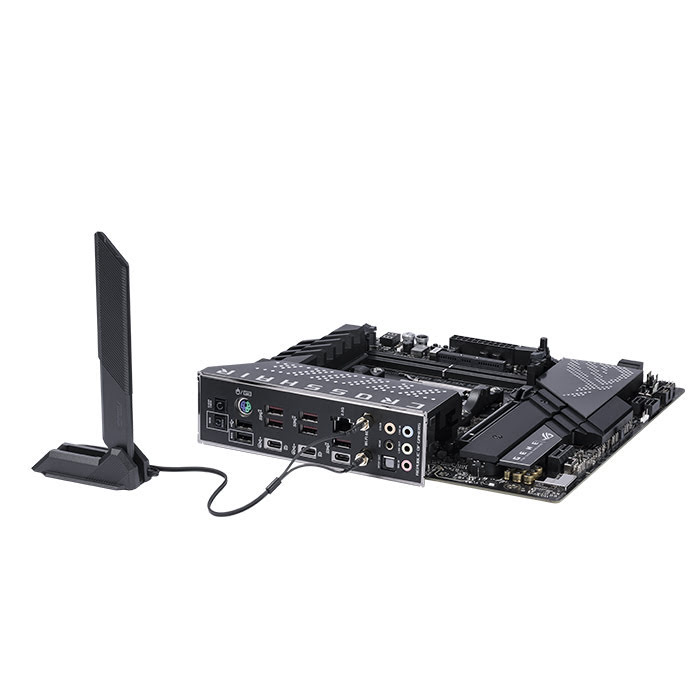

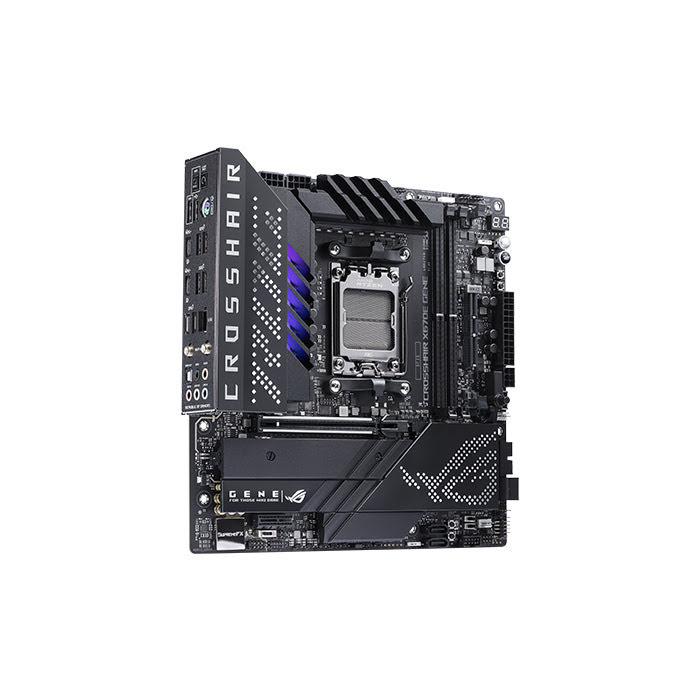

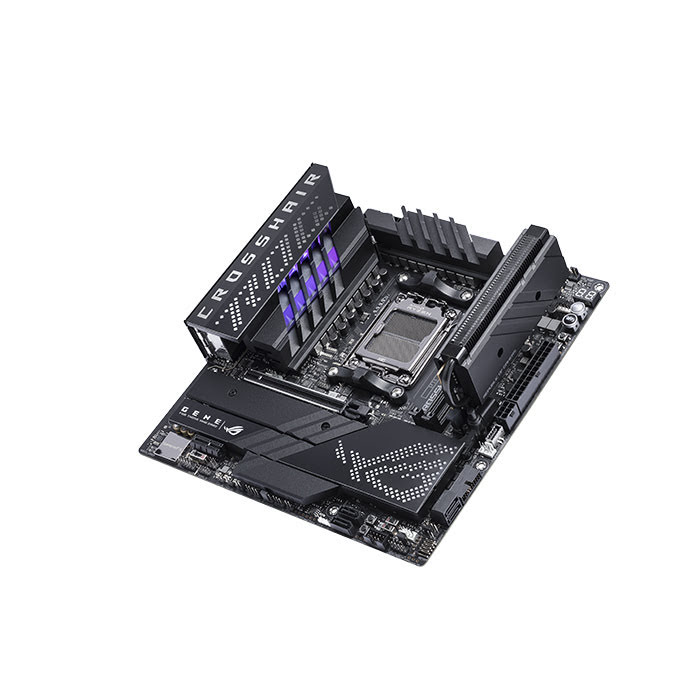

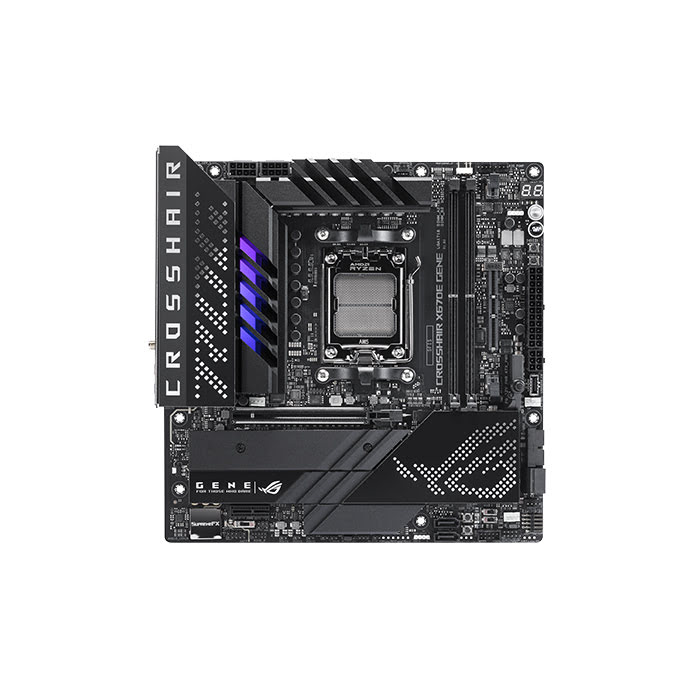

ROG CROSSHAIR X670E GENE - X670/AM5/DDR5/mATX
Carte mère - Gamer - Multimédia - Pro - Art Graphique - AMD AM5 - Micro-ATX - Wifi - 2 - DDR5 - RGB - 3 - AMD X670 - 64Go - 4800MHz PC38400 - 5000MHz PC40000 - 5200MHz PC41600 - 5400MHz PC43200 - 5600MHz PC44800 - 5800MHz PC46400 - 6000MHz PC48000 - 6200MHz PC49600 - 6400MHz PC51200 - Sans GPU - SATA III - M.2 - 4 - Connecteur standard
Photos non contractuelles
Caractéristiques principales :
- Utilisation : Gamer
- Utilisation : Multimédia
- Utilisation : Pro
- Utilisation : Art Graphique
- Socket : AMD AM5
- Format Carte-mère : Micro-ATX
- Connectivité : Wifi
- Nombre de barrettes RAM : 2
- Norme Mémoire RAM : DDR5
- LED : RGB
Specifications | |
---|---|
CPU | AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors* |
* Refer to www.asus.com for CPU support list. | |
Chipset | AMD X670 |
Memory | 2 x DIMM, Max. 64GB, DDR5 |
6400+(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory* | |
Dual Channel Memory Architecture | |
Supports AMD EXTended Profiles for Overclocking (EXPO™) | |
OptiMem II | |
* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. | |
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function | |
Graphics | 2 x USB4® ports support USB Type-C® display outputs* |
* VGA resolution support depends on processors' or graphic cards' resolution. | |
Expansion Slots | AMD Ryzen™ 7000 Series Desktop Processors* |
1 x PCIe 5.0 x16 slot | |
AMD X670 Chipset | |
1 x PCIe 4.0 x1 slot | |
* Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/). | |
Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* |
AMD Ryzen™ 7000 Series Desktop Processors | |
M.2 slot (Key M), type 2242/2260/2280 | (supports PCIe 5.0 x4 mode) |
GEN-Z.2_1 slot (Key M) via GEN-Z.2, type 2242/2260/2280/22110 (supports PCIe 5.0 x4)** | |
AMD X670 Chipset | |
GEN-Z.2_2 slot (Key M) via GEN-Z.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4) | |
4 x SATA 6Gb/s ports | |
*AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10. | |
**Performance may vary depending on the SSD's firmware version and the system hardware & system configuration, for more information refer to www.asus.com for device support site. | |
Ethernet | 1 x Intel® 2.5Gb Ethernet |
ASUS LANGuard | |
Wireless & Bluetooth | Wi-Fi 6E |
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) | |
Supports 2.4/5/6GHz frequency band* | |
Bluetooth v5.2 | |
* WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later. | |
USB | Rear USB (Total 10 ports) |
2 x USB4® ports with Intel® JHL8540 USB4® controller (2 x USB Type-C®) | |
6 x USB 3.2 Gen 2 ports (5 x Type-A + 1 x USB Type-C®) | |
2 x USB 2.0 ports (2 x Type-A) | |
Front USB (Total 7 ports) | |
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® with up to 60W PD/QC4+)* | |
1 x USB 3.2 Gen 1 headers supports additional 2 USB 3.2 Gen 1 ports | |
2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
*To support 60W, please install the power cable to the 6-pin PCIe Graphics | |
Card connector or else only 27W can be supported. | |
Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 |
Impedance sense for front and rear headphone outputs | |
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
High quality 120 dB SNR stereo playback output and 113 dB SNR recording input | |
Supports up to 32-Bit/384 kHz playback | |
Audio Features | |
SupremeFX Shielding Technology | |
Savitech SV3H712 AMP | |
Gold-plated audio jacks | |
Rear optical S/PDIF out port | |
Premium audio capacitors | |
Audio cover | |

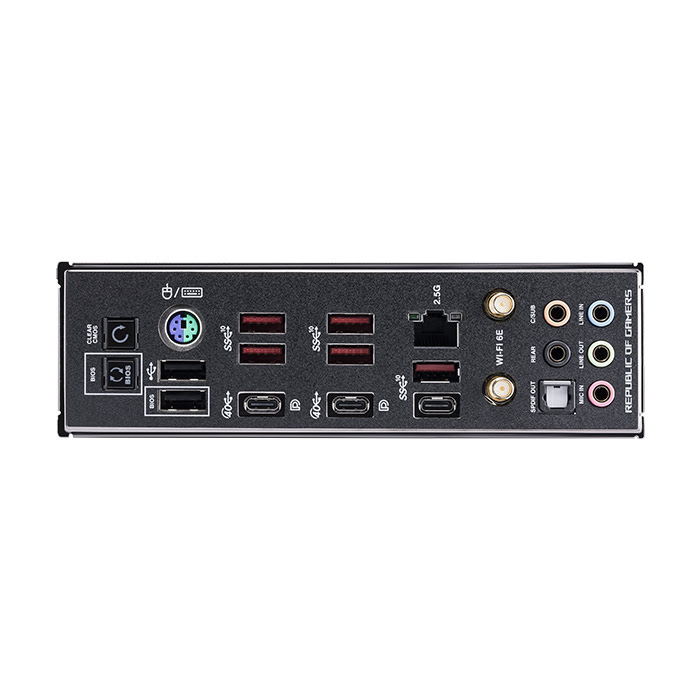

Back Panel I/O Ports | 2 x USB4® ports with Intel® JHL8540 USB4® controller (2 x USB Type-C®) |
6 x USB 3.2 Gen 2 port(s) (5 x Type-A + 1 x USB Type-C®) | |
2 x USB 2.0 ports (2 x Type-A) | |
1 x Wi-Fi Module | |
1 x Intel® I226-V 2.5Gb Ethernet port | |
5 x Gold-plated audio jacks | |
1 x Optical S/PDIF out port | |
1 x BIOS FlashBack™ button | |
1 x Clear CMOS button | |
1 x PS/2 Keyboard/Mouse combo port | |
Internal I/O Connectors Fan and Cooling related | |
1 x 4-pin CPU Fan header | |
1 x 4-pin CPU OPT Fan header | |
1 x 4-pin AIO Pump header | |
1 x 4-pin Chassis Fan header | |
3 x 4-pin Full Speed Fan headers | |
Power related | |
1 x 24-pin Main Power connector | |
2 x 8-pin +12V Power connector | |
1 x 6-pin PCIe Graphics Card connector | |
Storage related | |
1 x M.2 slots (Key M) | |
1 x Gen-Z.2 slot supports 2 x M.2 slots (Key M) | |
4 x SATA 6Gb/s ports | |
USB | 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®) |
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports | |
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports | |
Miscellaneous | |
1 x 80 Light Bar jumper | |
2 x Addressable Gen 2 headers | |
1 x Alteration Mode Switch | |
1 x Aura RGB header | |
2 x BCLK button | |
1 x FlexKey button | |
1 x 10-1 pin Front Panel Audio header (AAFP) | |
1 x LN2 Mode jumper | |
1 x Osc sence header | |
12 x ProbeIt Measurement Points | |
1 x ReTry button | |
1 x RSVD switch | |
1 x RSVD header | |
1 x Safe Boot button | |
1 x Slow Mode switch | |
1 x Start button | |
1 x 10-1 pin System Panel header | |
1 x Thermal Sensor header | |
Special Features | Extreme OC Kit |
FlexKey button | |
LN2 Mode | |
Probelt | |
ReTry button | |
Safe boot button | |
Start button | |
Slow Mode | |
Extreme Engine Digi+ | |
10K Black Metallic Capacitors | |
MicroFine Alloy Choke | |
ASUS Q-Design | |
M.2 Q-Latch | |
PCIe Slot Q-Release | |
Q-Code | |
Q-Connector | |
Q-DIMM | |
Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) | |
Q-Slot | |
ASUS Thermal Solution | |
M.2 heatsink backplate | |
M.2 heatsink | |
VRM heatsink design | |
ASUS EZ DIY | |
BIOS FlashBack™ button | |
Clear CMOS button | |
ProCool II | |
Pre-mounted I/O shield | |
SafeSlot | |
SafeDIMM | |
Aura Sync | |
Aura RGB header(s) | |
Addressable Gen 2 header(s) | |
Front Panel USB 3.2 Gen 2x2 with Quick Charge 4+ Support | |
Support: up to 60W charging* | |
Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A | |
Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS | |
* To support 60W, please install the power cable to 6-pin PCIe Graphics Card connector or can only support 27W | |
Software Features | ROG Exclusive Software |
GameFirst VI | |
ROG CPU-Z | |
ROG True Voltician | |
Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion | |
Sonic Radar III | |
DTS® Sound Unbound | |
BullGuard Internet Security (1-year full version) | |
ASUS Exclusive Software | |
Armoury Crate | |
AIDA64 Extreme (1 year full version) | |
Aura Creator | |
Aura Sync | |
Fan Xpert 4 with AI Cooling II | |
Power Saving | |
Two-Way AI Noise Cancellation | |
AI Suite 3 | |
TPU | |
DIGI+ Power Control | |
Turbo app | |
PC Cleaner | |
MyAsus | |
WinRAR | |
UEFI BIOS | |
ASUS EZ DIY | |
ASUS CrashFree BIOS 3 | |
ASUS EZ Flash 3 | |
ASUS UEFI BIOS EZ Mode | |
BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
Manageability | WOL by PME, PXE |
Accessories | Cables |
1 x RGB extension cable | |
2 x SATA 6Gb/s cables | |
ROG GEN-Z.2 with Heatsink | |
1 x ROG GEN-Z.2 with heatsink | |
1 x M.2 pad for ROG GEN-Z.2 | |
2 x M.2 screw package for ROG GEN-Z.2 | |
ROG True Voltician | |
1 x ROG True Voltician | |
4 x cables for ROG True Voltician | |
Additional Cooling Kit | |
1 x Thermal pad for M.2 | |
Miscellaneous | |
1 x ASUS Wi-Fi moving antennas | |
1 x Q-connector | |
1 x M.2 Q-Latch package for M.2 backplate | |
1 x ROG Graphics card holder | |
1 x ROG key chain | |
1 x ROG stickers | |
1 x ROG thank you card | |
1 x Rubber Package for M.2 backplate | |
Installation Media | 1 x USB drive with utilities and drivers |
Documentation | 1 x User guide |
Operating System | Windows® 11 64-bit |
Form Factor | micro-ATX Form Factor |
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) |
Code EAN :
4711081894537
Référence produit :
00401139
Référence constructeur :
90MB1B80-M0EAY0
