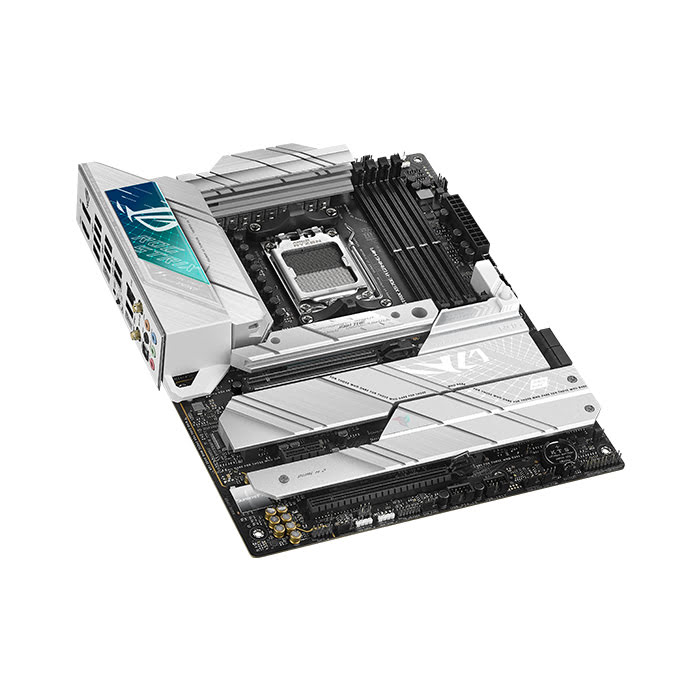

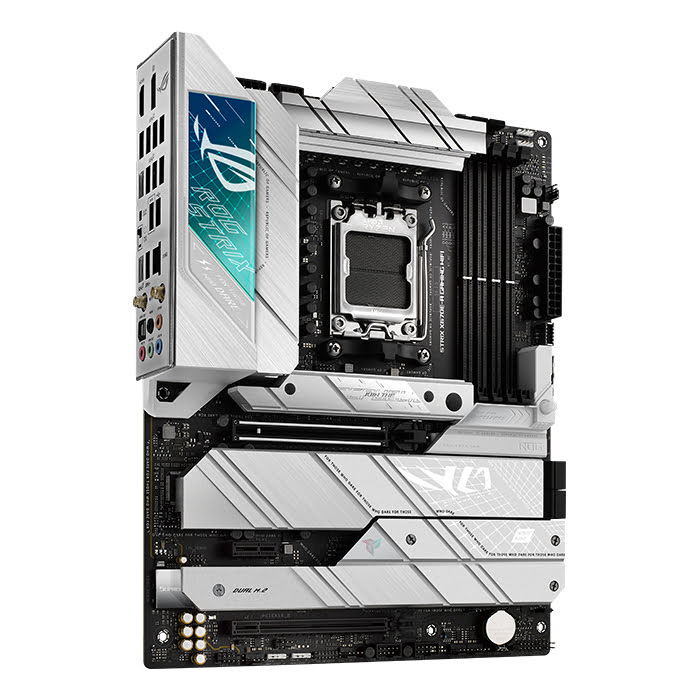

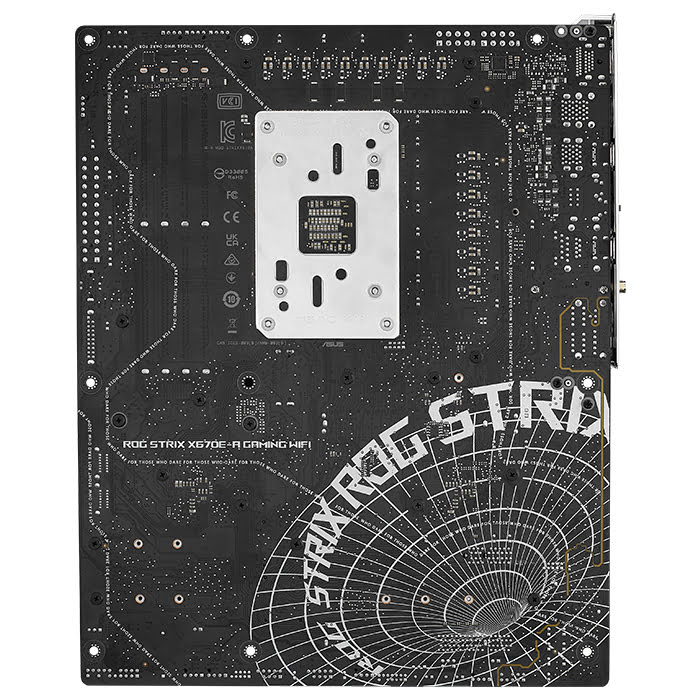

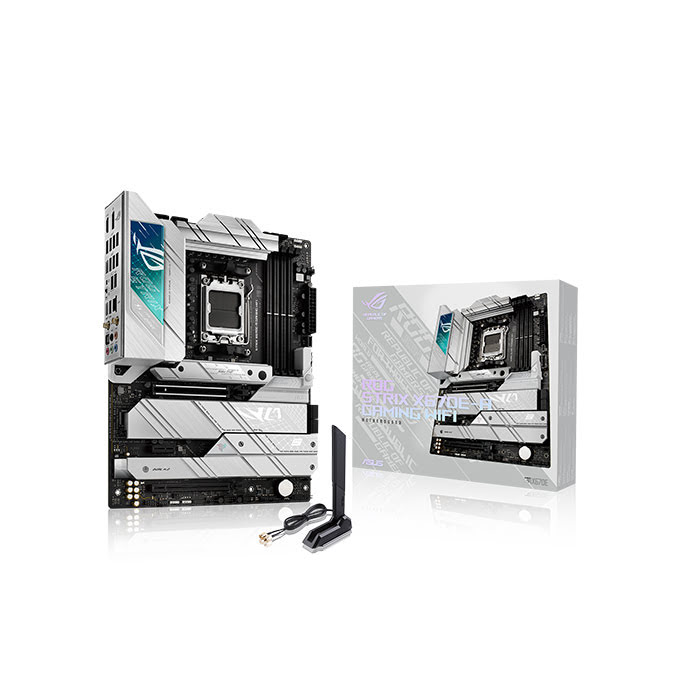

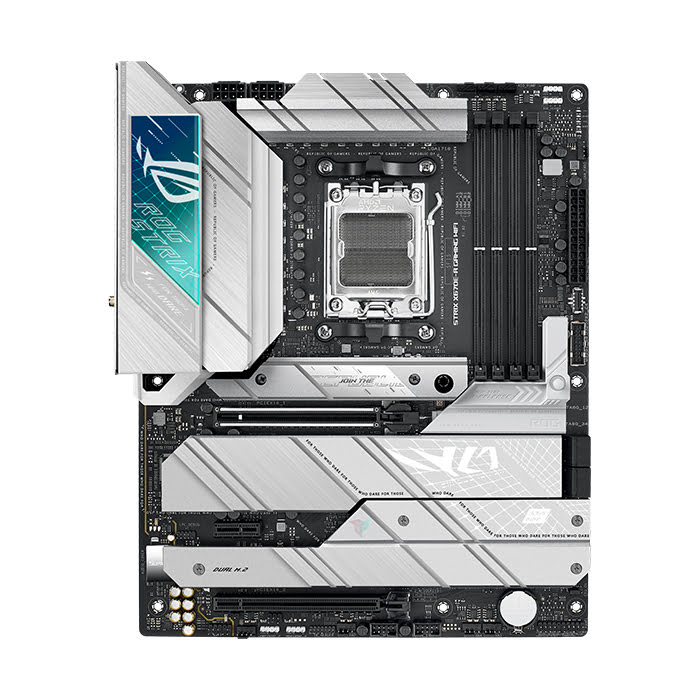

ROG STRIX X670E-A GAMING WIFI - X670/AM5/DDR5/ATX
Carte mère - Gamer - Multimédia - Pro - Art Graphique - AMD AM5 - ATX - Wifi - 4 - DDR5 - RGB - 4 - AMD X670 - 128Go - 4800MHz PC38400 - 5000MHz PC40000 - 5200MHz PC41600 - 5400MHz PC43200 - 5600MHz PC44800 - 5800MHz PC46400 - 6000MHz PC48000 - 6200MHz PC49600 - 6400MHz PC51200 - Sans GPU - SATA III - M.2 - 4 - Connecteur standard
Photos non contractuelles
Caractéristiques principales :
- Utilisation : Gamer
- Utilisation : Multimédia
- Utilisation : Pro
- Utilisation : Art Graphique
- Socket : AMD AM5
- Format Carte-mère : ATX
- Connectivité : Wifi
- Nombre de barrettes RAM : 4
- Norme Mémoire RAM : DDR5
- LED : RGB
| Specifications | |
|---|---|
| CPU | AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors* |
| * Refer to www.asus.com for CPU support list. | |
| Chipset | AMD X670 |
| Memory | 4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory* |
| Dual Channel Memory Architecture | |
| Supports AMD EXTended Profiles for Overclocking (EXPO™) | |
| OptiMem II | |
| * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. | |
| * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function | |
| Graphics | 1 x DisplayPort* |
| 1 x HDMI® port** | |
| *Supports max. 8K@60Hz as specified in DisplayPort 1.4. | |
| **Supports Supports 4K@60Hz as specified in HDMI 2.1. | |
| *** VGA resolution support depends on processors' or graphic cards' resolution. | |
| Expansion Slots | AMD Ryzen™ 7000 Series Desktop Processors |
| 1 x PCIe 5.0/4.0/3.0 x16 slot | |
| AMD X670 Chipset | |
| 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode) | |
| 1 x PCIe 3.0 x1 slot | |
| Storage | Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* |
| AMD Ryzen™ 7000 Series Desktop Processors | |
| M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) | |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) | |
| AMD X670 Chipset | |
| M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) | |
| M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
| 4 x SATA 6Gb/s ports | |
| *AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10 | |
| Ethernet | 1 x Intel® 2.5Gb Ethernet |
| ASUS LANGuard | |
| Wireless & Bluetooth | Wi-Fi 6E |
| 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) | |
| Supports 2.4/5/6GHz frequency band* | |
| Bluetooth v5.2 | |
| * WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later. | |
| USB | Rear USB (Total 12 ports) |
| 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) | |
| 8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C®) | |
| 1 x USB 3.2 Gen 1 port (1 x Type-A) | |
| 2 x USB 2.0 ports (2 x Type-A) | |
| Front USB (Total 7 ports) | |
| 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® ) | |
| 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 |
| Impedance sense for front and rear headphone outputs | |
| Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
| High quality 120 dB SNR stereo playback output and 113 dB SNR recording input | |
| Supports up to 32-Bit/384 kHz playback | |
| Audio Features | |
| SupremeFX Shielding Technology | |
| Savitech SV3H712 AMP | |
| Rear optical S/PDIF out port | |
| Premium audio capacitors | |
| Audio cover | |
| Back Panel I/O Ports | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) |
| 8 x USB 3.2 Gen 2 ports (7 x Type-A, 1 x USB Type-C®) | |
| 1 x USB 3.2 Gen 1 port (1 x Type-A) | |
| 2 x USB 2.0 ports (2 x Type-A) | |
| 1 x DisplayPort | |
| 1 x HDMI® port | |
| 1 x Wi-Fi Module | |
| 1 x Intel® I225-V 2.5Gb Ethernet port | |
| 5 x Audio jacks | |
| 1 x Optical S/PDIF out port | |
| 1 x BIOS FlashBack™ button | |
| 1 x Clear CMOS button | |
| Internal I/O Connectors Fan and Cooling related | 1 x 4-pin CPU Fan header |
| 1 x 4-pin CPU OPT Fan header | |
| 1 x 4-pin AIO Pump header | |
| 5 x 4-pin Chassis Fan headers | |
| Power related | |
| 1 x 24-pin Main Power connector | |
| 2 x 8-pin +12V Power connector | |
| Storage related | |
| 4 x M.2 slots (Key M) | |
| 4 x SATA 6Gb/s ports | |
| USB | 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® ) |
| 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
| Miscellaneous | |
| 3 x Addressable Gen 2 headers | |
| 1 x Aura RGB header | |
| 1 x CPU Over Voltage jumper | |
| 1 x Front Panel Audio header (AAFP) | |
| 1 x 20-3 pin System Panel header with Chassis intrude function | |
| 1 x Thermal Sensor header | |
| 1 x Thunderbolt™ button | |
| Special Features | Extreme Engine Digi+ |
| 5K Black Metallic Capacitors | |
| ASUS Q-Design | |
| M.2 Q-Latch | |
| PCIe Slot Q-Release | |
| Q-DIMM | |
| Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) | |
| Q-Slot | |
| ASUS Thermal Solution | |
| M.2 heatsink backplate | |
| M.2 heatsink | |
| VRM heatsink design | |
| ASUS EZ DIY | |
| BIOS FlashBack™ button | |
| BIOS FlashBack™ LED | |
| Clear CMOS button | |
| ProCool II | |
| Pre-mounted I/O shield | |
| SafeSlot | |
| SafeDIMM | |
| AURA Sync | |
| AURA RGB header | |
| Addressable Gen 2 headers | |
| Software Features | ROG Exclusive Software |
| GameFirst VI | |
| ROG CPU-Z | |
| Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion | |
| Sonic Radar III | |
| DTS® Sound Unbound | |
| Anti-virus software | |
| ASUS Exclusive Software | |
| Armoury Crate | |
| AIDA64 Extreme (60 days free trial) | |
| AURA Creator | |
| AURA Sync | |
| Fan Xpert 4 (with AI Cooling II) | |
| Power Saving | |
| Two-Way AI Noise Cancellation | |
| AI Suite 3 | |
| TPU | |
| DIGI+ VRM | |
| Turbo app | |
| PC Cleaner | |
| MyAsus | |
| WinRAR | |
| UEFI BIOS | |
| ASUS EZ DIY | |
| ASUS CrashFree BIOS 3 | |
| ASUS EZ Flash 3 | |
| ASUS UEFI BIOS EZ Mode | |
| FlexKey | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |

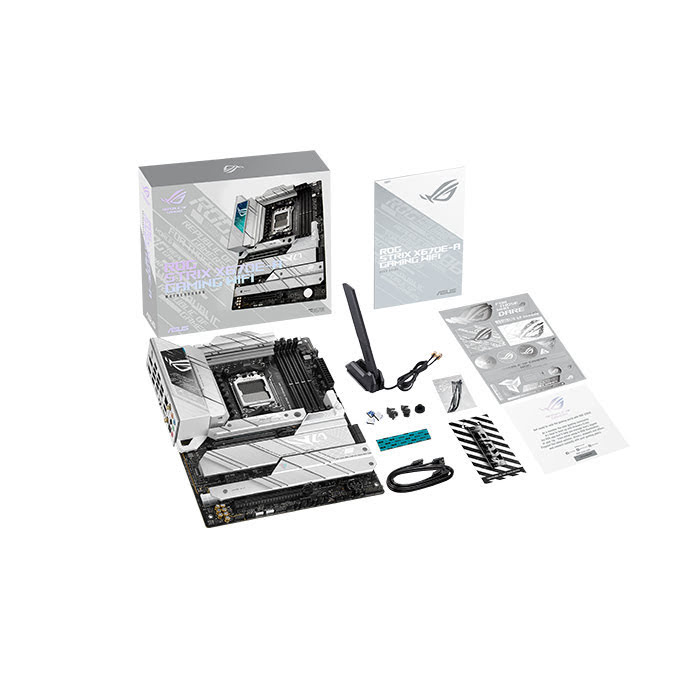

| Accessories | Cables |
| 2 x SATA 6Gb/s cables | |
| Additional Cooling Kit | |
| 1 x Thermal pad for M.2 | |
| Miscellaneous | |
| 1 x ASUS Wi-Fi moving antennas | |
| 1 x Cable ties pack | |
| 1 x M.2 Q-Latch packages for M.2 backplate | |
| 1 x M.2 Q-Latch package | |
| 1 x ROG key chain | |
| 1 x ROG Strix sticker | |
| 1 x ROG Strix thank you card | |
| 2 x Rubber Packages for M.2 | |
| 1 x Rubber Package for M.2 backplate | |
| Documentation | 1 x User guide |
| Operating System | Windows® 11 64-bit |
| Form Factor | ATX Form Factor |
| 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
