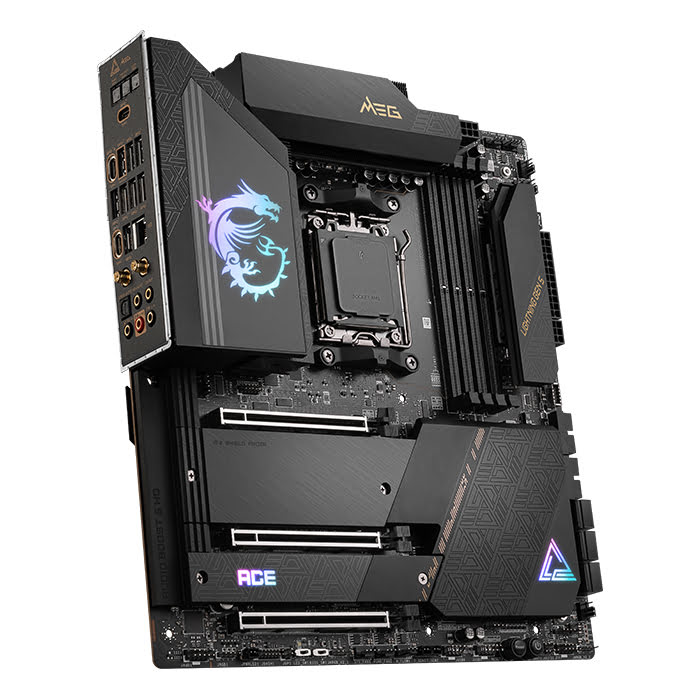

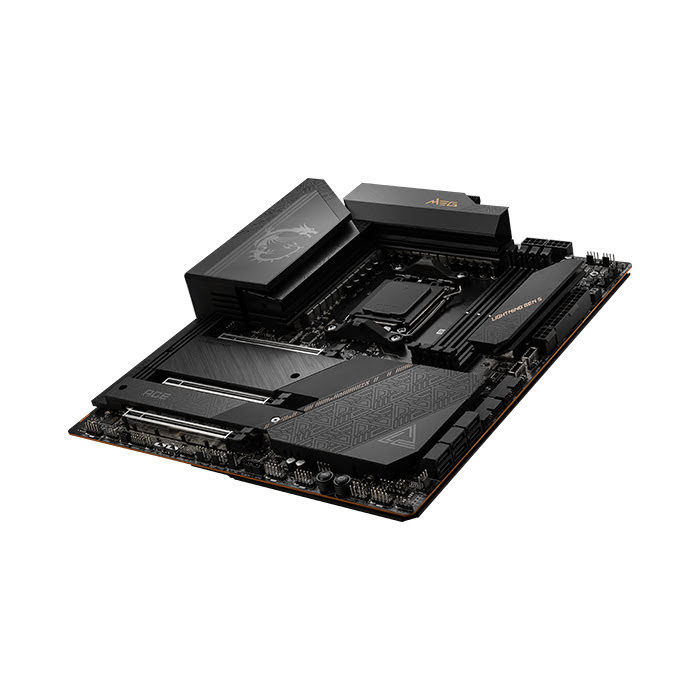

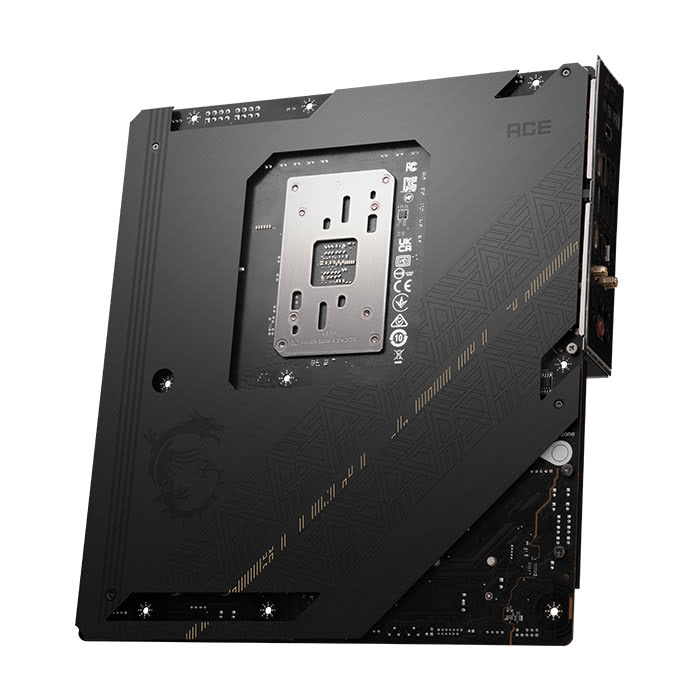

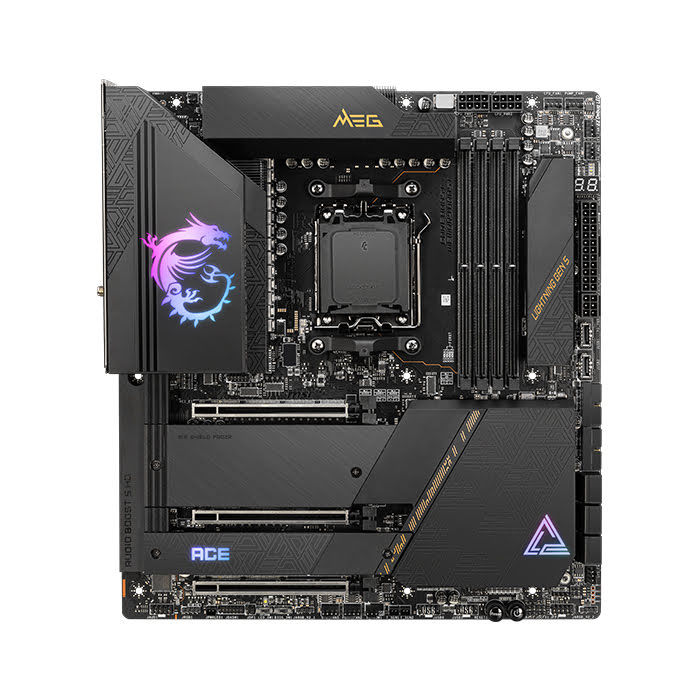

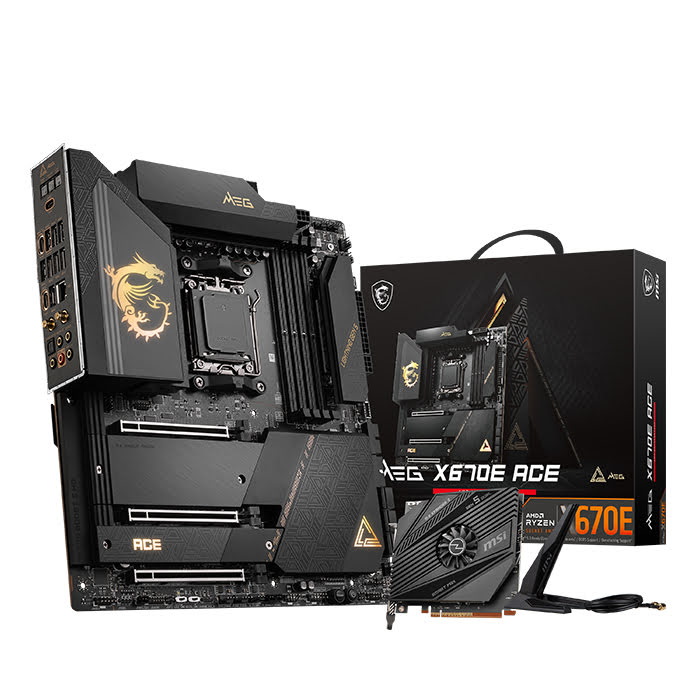

MEG X670E ACE - X670/AM5/DDR5/ATX
Carte mère - Gamer - Pro - AMD AM5 - ATX - Wifi - 4 - DDR5 - RGB - 4 - AMD X670 - 128Go - 4800MHz PC38400 - 5000MHz PC40000 - 5200MHz PC41600 - 5400MHz PC43200 - 5600MHz PC44800 - 5800MHz PC46400 - 6000MHz PC48000 - 6200MHz PC49600 - 6400MHz PC51200 - 6600MHz PC52800 - 6800MHz PC54400 - 7000MHz PC56000 - 7200MHz PC57600 - 7400MHz PC59200 - 7600MHz PC60800 - 7800MHz PC62400 - 8000MHz PC64000 - Sans GPU - SATA III - M.2 - 6 - Connecteur standard
Photos non contractuelles
Caractéristiques principales :
- Utilisation : Gamer
- Utilisation : Pro
- Socket : AMD AM5
- Format Carte-mère : ATX
- Connectivité : Wifi
- Nombre de barrettes RAM : 4
- Norme Mémoire RAM : DDR5
- LED : RGB
- Nombre de Port M2 : 4
- Chipset : AMD X670
| Specifications | |
|---|---|
| CHIPSET | AMD X670 |
| CPU SUPPORT | Supports AMD Ryzen™ 7000 Series Desktop Processors |
| Socket AM5 | |
| MEMORY | 4x DDR5, Maximum Memory Capacity 128GB |
| Memory Support DDR5 6666+(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800(JEDEC) MHz | |
| Max. overclocking frequency: | |
| • 1DPC 1R Max speed up to 6666+ MHz | |
| • 1DPC 2R Max speed up to 6000+ MHz | |
| • 2DPC 1R Max speed up to 6400+ MHz | |
| • 2DPC 2R Max speed up to 4000+ MHz | |
| Supports Dual-Channel mode | |
| Supports non-ECC, un-buffered memory | |
| Supports AMD EXPO | |
| ONBOARD GRAPHICS | 1x Type-C DisplayPort |
| Supports DisplayPort 1.4 with HBR3, maximum resolution of 4K 120Hz* | |
| *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. | |
| EXPANSION SLOT | 3x PCI-E x16 slot |
| Supports x16/x0/x4, x8/x8/x4 | |
| PCI_E1 PCIe 5.0 supports up to x16 (From CPU) | |
| PCI_E2 PCIe 5.0 supports up to x8 (From CPU) | |
| PCI_E3 PCIe 5.0 supports up to x4 (From CPU) | |
| MULTI-GPU | Supports AMD MULTI-GPU |
| STORAGE | 4x M.2 slot |
| M.2_1 (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices | |
| M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices | |
| M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices | |
| M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices | |
| 6x SATA 6G port | |
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices* |
| Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices | |
| * SATA_A1~A2 do not support RAID function. | |
| USB | 4x USB 2.0 (Front) |
| 4x USB 3.2 Gen1 Type A (Front) | |

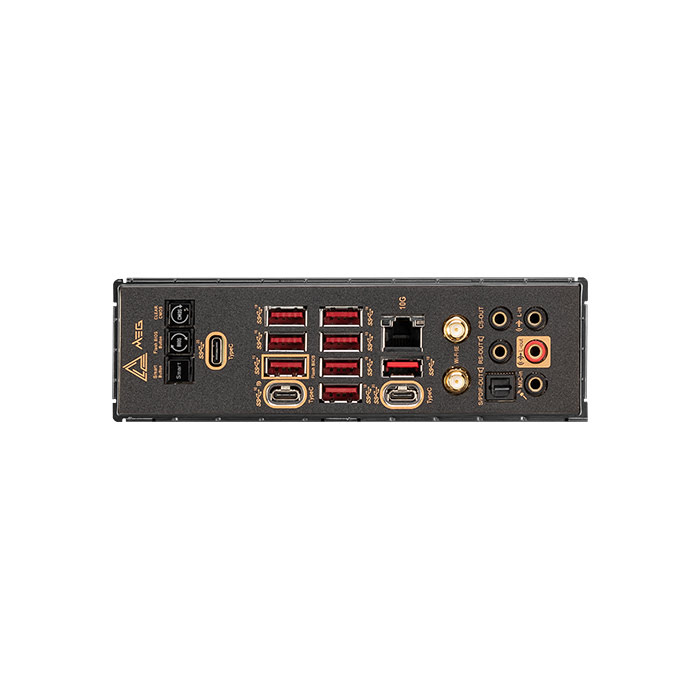

| 8x USB 3.2 Gen2 Type A (Rear) | |
| 1x USB 3.2 Gen2 Type C (Rear) | |
| 1x USB 3.2 Gen2 Type C (Front) | |
| 2x USB 3.2 Gen2x2 Type C (Rear) | |
| 1x USB 3.2 Gen2x2 Type C (Front) | |
| LAN | Marvell® AQC113-B1-C 10Gbps LAN |
| WIRELESS / BLUETOOTH | AMD Wi-Fi 6E |
| The Wireless module is pre-installed in the M.2 (Key-E) slot | |
| Supports MU-MIMO TX/RX | |
| Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands | |
| Supports 802.11 a/ b/ g/ n/ ac/ ax | |
| Supports Bluetooth® 5.2** | |
| * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11. | |
| ** Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11. | |
| AUDIO | Realtek® ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA |
| 7.1-Channel High Definition Audio | |
| Supports S/PDIF output | |
| Supports up to 32-Bit/384 kHz playback on front panel | |
| INTERNAL I/O | 1x Power Connector(ATX_PWR) |
| 2x Power Connector(CPU_PWR) | |
| 1x Front Type-C Quick Charge Connector(PD_PWR1) | |
| 1x CPU Fan | |
| 2x Pump Fan | |
| 5x System Fan | |
| 2x Front Panel (JFP) | |
| 1x Chassis Intrusion (JCI) | |
| 1x Water Flow connector | |
| 1x Slow Mode Booting Jumper(JSLOW) | |
| 1x Front Audio (JAUD) | |
| 2x Thermal Sensor connectors(T_SEN) | |
| 1x Tuning Controller connector(JDASH) | |
| 3x Addressable V2 RGB LED connector (JARGB_V2) | |
| 1x RGB LED connector(JRGB) | |
| 1x TPM pin header(Support TPM 2.0) | |
| 4x USB 2.0 | |
| 4x USB 3.2 Gen1 Type A | |
| 1x USB 3.2 Gen2 Type C | |
| 1x USB 3.2 Gen 2x2 Type-C | |
| 1x USB 3.2 Gen 2x2 Type C | |
| V-check point | |
| LED FEATURE | 1x EZ LED Control switch |
| 4x EZ Debug LED | |
| 1x 2-Digit Debug Code LED |
Code EAN :
4711377004169
Référence produit :
00401137
Référence constructeur :
MEG X670E ACE
