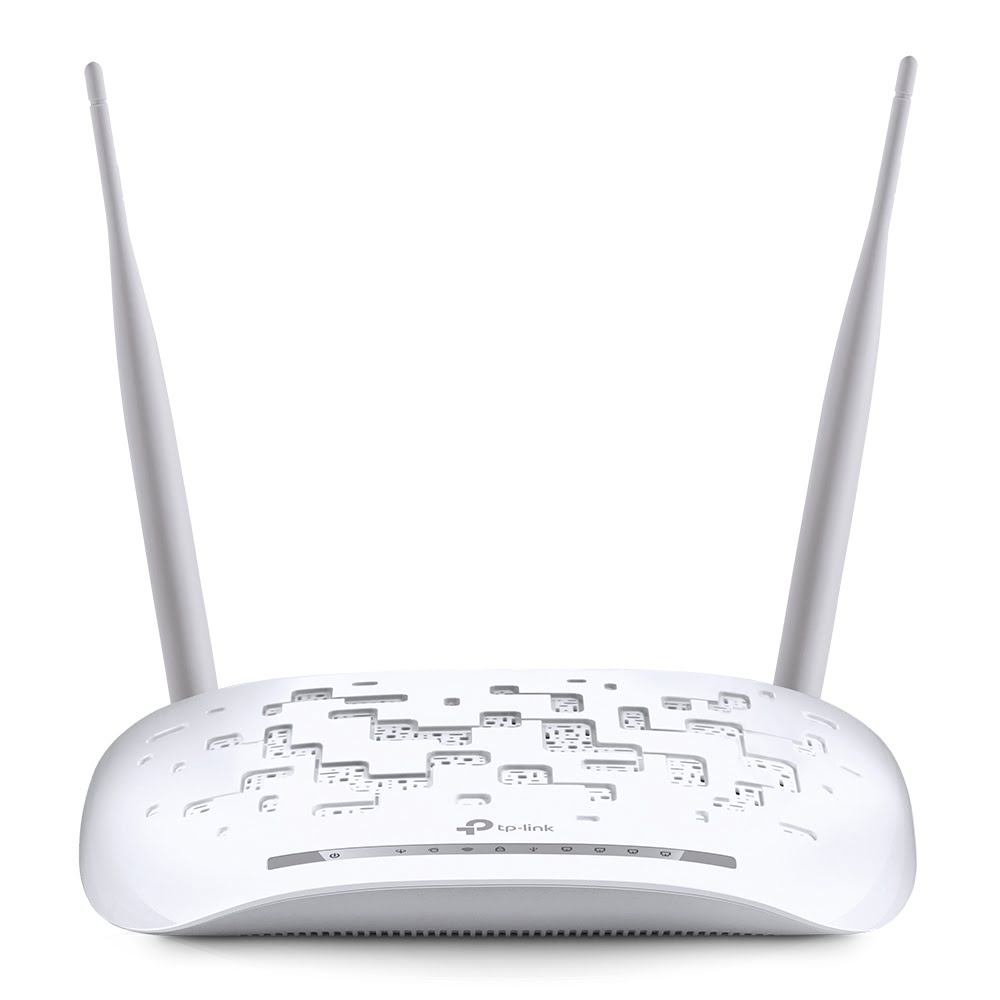

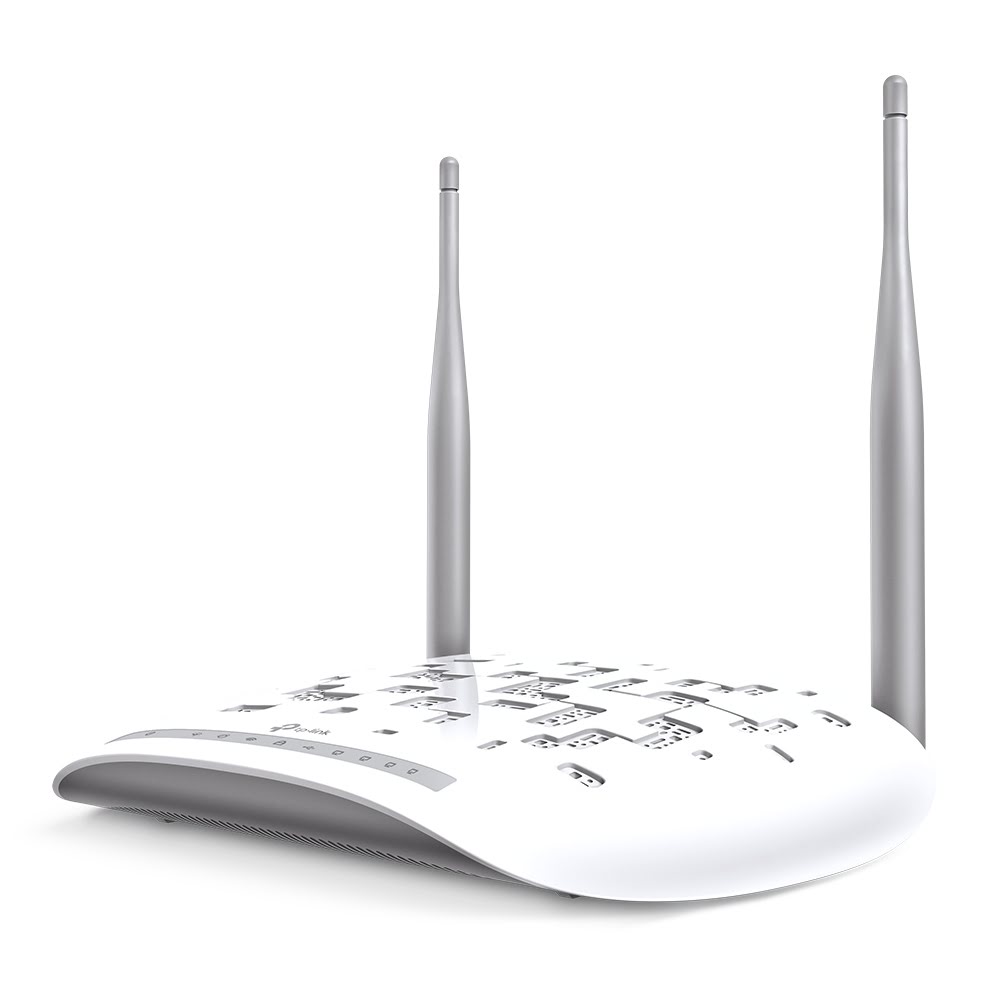

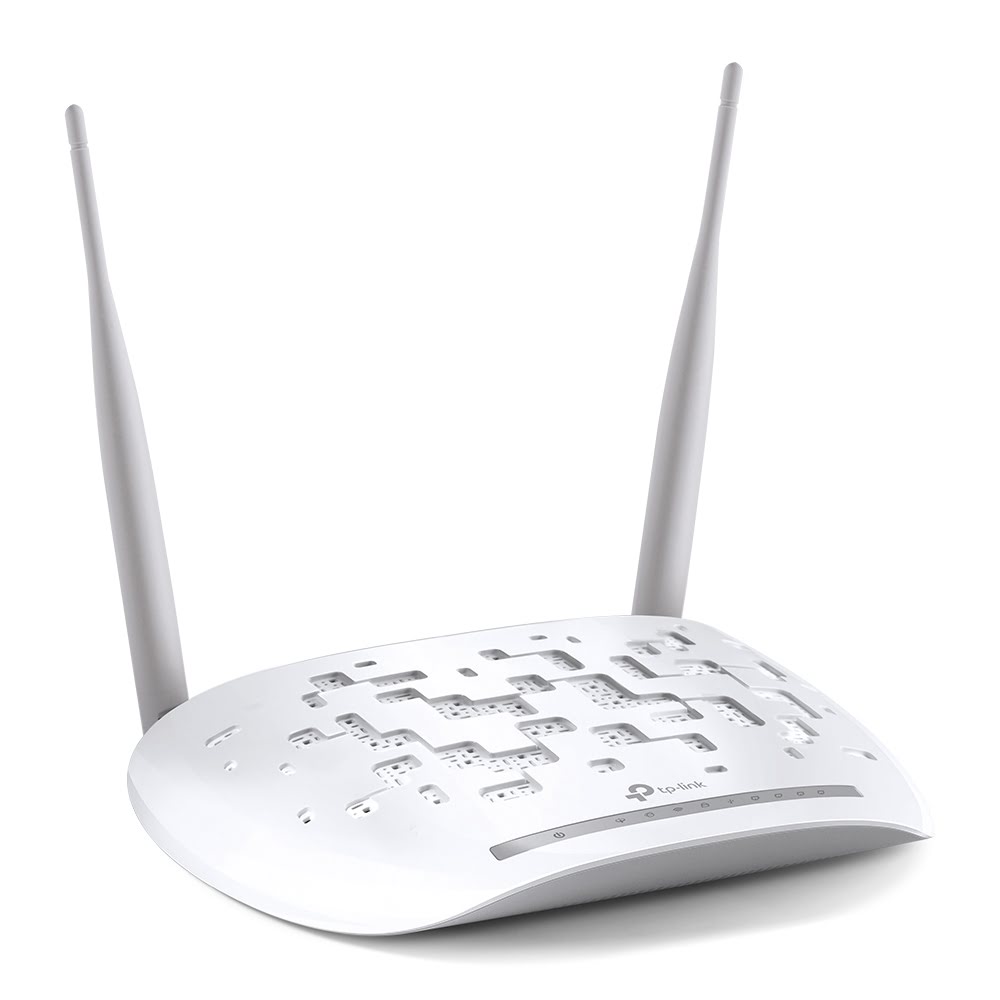

TD-W9970 - 4 ports 10/100 + WiFi 802.11n

CARACTERISTIQUES MATERIELLES

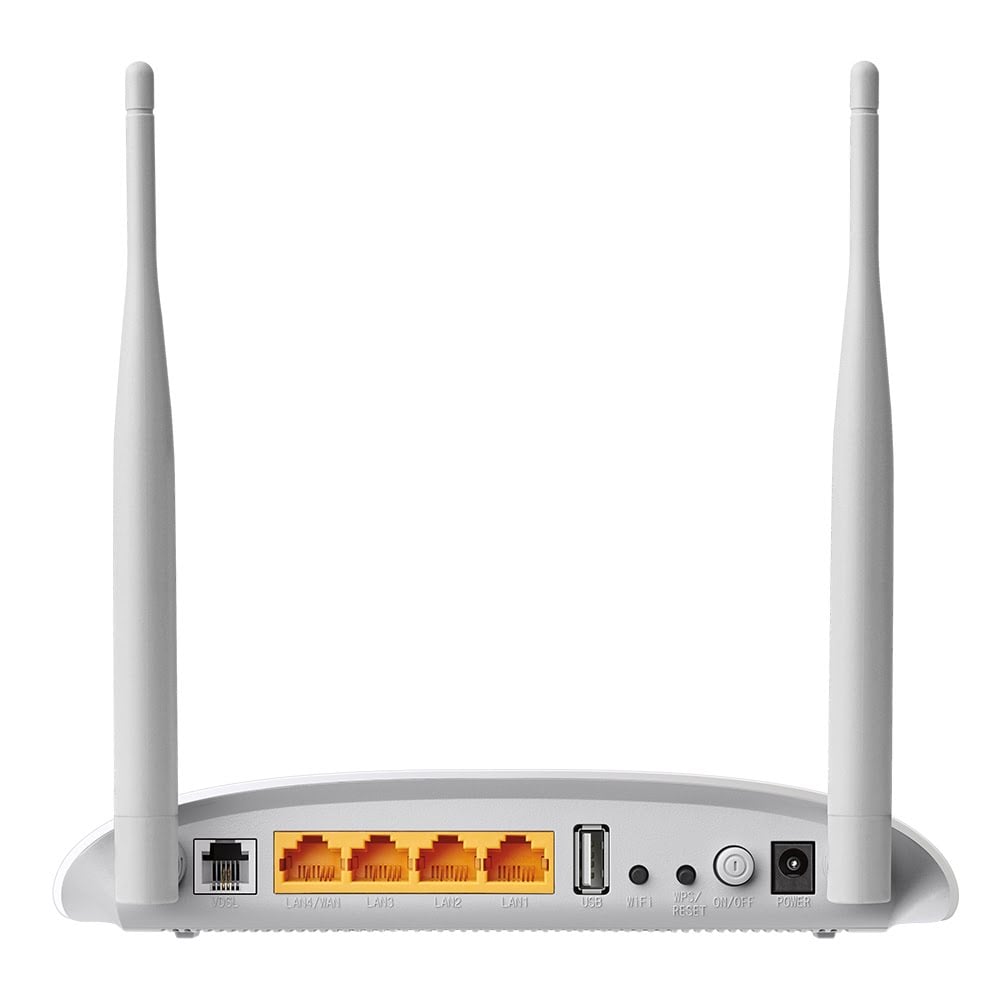

Interface :
- 4 10/100Mbps RJ45 Ports
- 1 RJ11 Port
- 1 USB 2.0 Port
Bouton :
- 1 Power On/Off Button
- 1 WPS/RESET Button
- 1 Wi-Fi On/Off Switch
Alimentation externe : 12VDC/1A
Standards IEEE : IEEE 802.3, 802.3u
Standards VDSL2 :
- ITU-T G.993.2
- ITU-T G.993.5 (G.vector)
- ITU-T G.998.4 (G.INP）
Standards ADSL :
- Full-rate ANSI T1.413 Issue 2
- ITU-T G.992.1(G.DMT)
- ITU-T G.994.1 (G.hs)
- ITU-T G.995.1
Standards ADSL2 : ITU-T G.992.3 (G.dmt.bis)
Standards ADSL2+ : ITU-T G.992.5
Dimensions (LxPxH) : 7.7*5.1*1.4 in. (195×130×36mm)
Type d'antenne : Omni directional, Fixed
Gain de l'antenne : 2 x 5dBi

Caractéristiques Wi-Fi
Standards Wi-Fi : IEEE 802.11b, 802.11g, 802.11n
Fréquence : 2.400-2.4835GHz
Puissance de transmission : <20dBm(EIRP)
Sécurité Wi-Fi : Support 64/128 bit WEP, WPA /WPA2, WPA-PSK/WPA2-PSK
Wireless MAC Filtering

CARACTERISTIQUES LOGICIELLES
Qualité de Service QoS : WMM, Bandwidth Control (IP QoS)
Sécurité : NAT Firewall,
SPI Firewall,
MAC / IP / URL Filtering
IPv6 : IPv6 and IPv4 dual stack
Supported IPv6 Tunnels: DS-Lite, 6RD, 6 to 4
Supported IPv6 Connection Type: PPPoEv6, DHCPv6, Static IPv6
Administration : Web Based Configuration(HTTP),
Remote management,
Telnet management,
Command Line Interface,
SSL for TR-069,
SNMP V1/V2C,
Web Based Firmware Upgrade,
CWMP(TR-069),
Diagnostic Tools
Redirection de port : Virtual server, Port Triggering, UPnP, DMZ, Manage Control
VPN Pass-Through (ne bloque pas un lien VPN) : PPTP, L2TP, IPSec Pass-through
Protocoles ATM/PPP : ATM Forum UNI3.1/4.0
PPP over ATM (RFC 2364)
PPP over Ethernet (RFC2516)
IPoA (RFC1577/2225)
PVC - Up to 8 PVCs
Caractéristiques avancées : Ethernet WAN (EWAN)
Guest Network, Wireless Schedule
Parent Control
Traffic Shaping(ATM QoS) UBR, CBR, VBR-rt, VBR-nrt;
Dynamic Host Configuration Protocol (DHCP), DHCP relay;
Network Address Translation (NAT);
PVC/Ethernet Port Grouping
Static Routing, RIP v1/v2 (optional);
DNS Relay, DDNS,
IGMP snooping V1/2
IGMP Multicast,
UPnP
Partage USB : Storage Sharing
FTP Server
Media Server
Print Server
IGMP : IGMP snooping V1/V2/V3
IGMP Multicast
VPN IPsec : 10 IPSec VPN Tunnels
LAN-to-LAN
Main, Aggressive Negotiation Mode
DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
MD5, SHA1 Authentication Algorithm
Manual, IKE Key Management Mode
Dead Peer Detection (DPD)
Perfect Forward Secrecy (PFS)

Autres
Certification : CE, RoHS
Contenu de l'emballage : TD-W9970
External Splitter
RJ-11 Telephone Line
RJ-45 Ethernet Cable
Quick Installation Guide
Resource CD
Power Adapter
Système requis : Windows 10/8.1/8/7/Vista/XP or Mac OS or Linux-based operating system
Environnement : Operating Temperature: 0~40 (32~104)
Storage Temperature: -40~70 (-40~158)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
